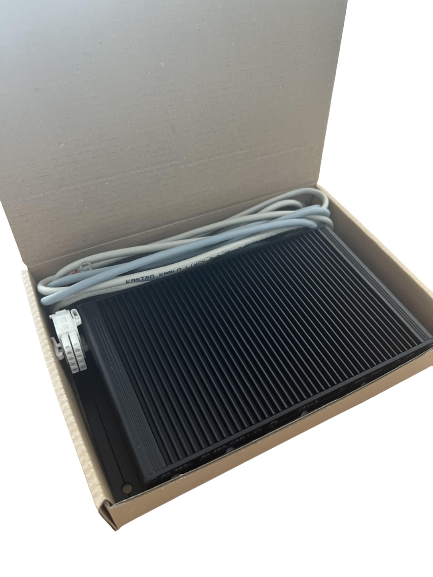

REC 2Q Series 16S BMS-Slave

$559.95

7 in stock (can be backordered)

Now includes integral Precharge circuit, dual temperature probes and current shunt wiring harness!

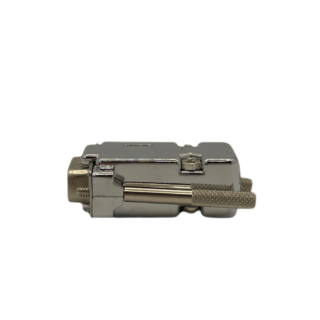

Both a  basic connector kit and prewired set of cables are available separately

2Q Slave Features:

  • robust and small design

  • 5-16 cells connections (14 – 68 V system)

  • up to 4 digital temperature sensors DS18B20

  • single cell voltage measurement (0.1 – 5.0 V, resolution 1 mV)

  • single cell – under/over voltage protection

  • single cell internal resistance measurement

  • SOC and SOH calculation

  • over temperature protection

  • under temperature charging protection

  • 4 Ω passive cell balancing with temperature protection

  • shunt current measurement (resolution 19.5 mA @ ± 500 A)

  • two galvanically isolated user defined multi-purpose digital output

  • internal DC opto-relay output

  • galvanically isolated RS-485 communication (in and out port with enable)

  • CAN communication

  • error LED + buzzer indicator

  • Wi-Fi user interface for changing the settings and data-logging (optional accessory)

  • Remote ON/OFF

  • Control pilot (CP) for EVSE

  • Integrated 25 Ohm pre-charge with adjustable time delay

  • Integrated RTC with last 7 errors

  • ISO16315, ISO10133, EN61558-1, EN61558-2 and EN50498 compliant

Weight 0.4 kg
Dimensions 15 × 20 × 5 cm
SKU: REC-2Q-BMS-16S-Slave Categories: , ,
